15 tonne worm gear machine screw jacks anti-rotation (keyed) design option

Product Description

15 tonne worm gear machine screw jacks anti-rotation (keyed) design option. Anti-backlash design option. Safety Nut design option. 6 mounting options including trunnion and double clevis. Special custom designs available.

Features:
1. Maximum lifting capacities 15 ton
2. Lifting screw sizes Tr 58x12
3. Worm gear ratios 1:8, 1:12, 1:24
4. Custom made lifts height 0-3000mm
5. End fittings: top plate, clevis end, threaded end, plain end, forked head and rod end
6. Translating screw,  Anti-rotation (keyed) screw and Rotating screw configurations

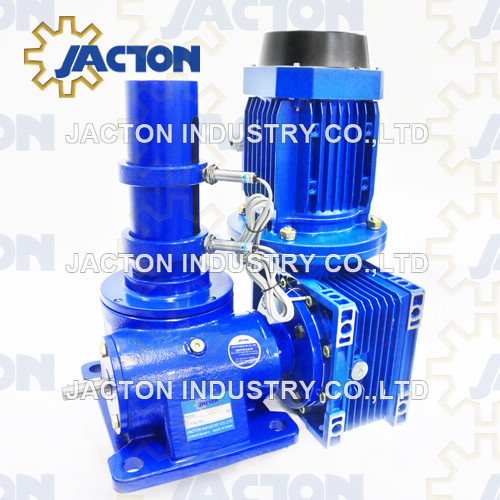

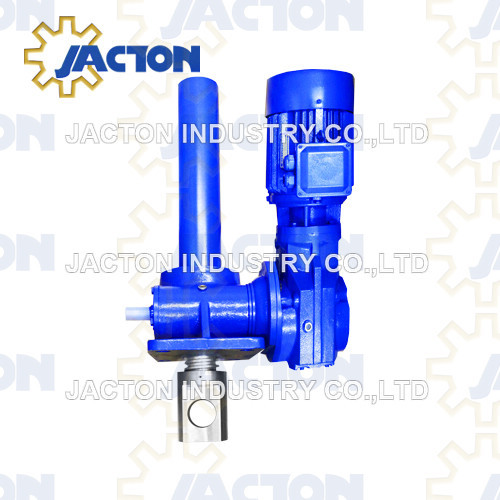

7. Power source: hand crank manual operation or electric motor operated
8. Can be applied either individually use or in tandem or in multiple arrangements for exactly synchronized lifting system, linked by bevel gearboxes, connecting shafts and couplings etc.

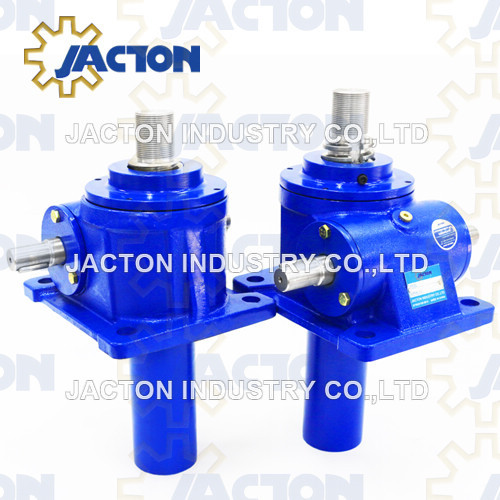

15 ton machine screw jack main components with international standard materials: The main components are trapezoidal lifting screw (worm screw) with C45 steel material, worm gear or travelling nut with bronze material, worm shaft with heat treatment C45 steel material, thrust bearings, grease seals and gear housing with ductile iron.
